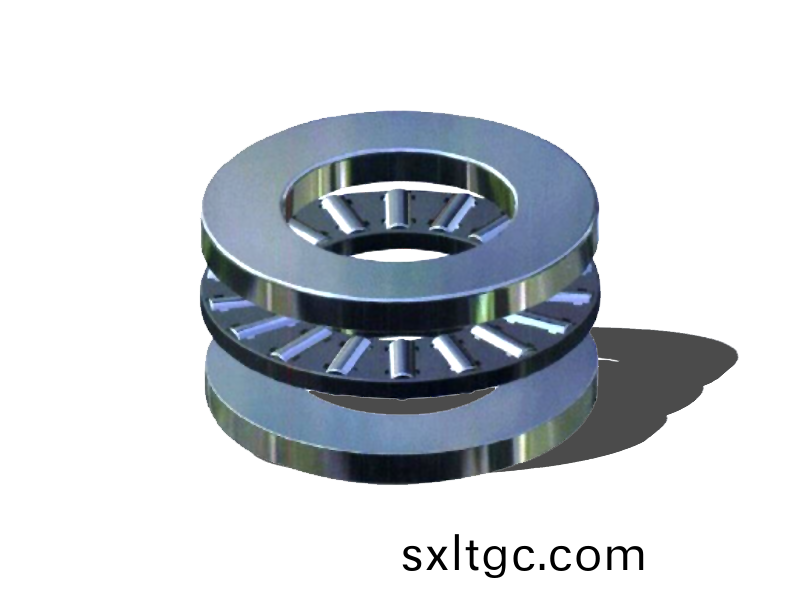

推力滚子轴承
| 基本尺寸 | 基本额定载荷 | 轴承类型 | 轴承图片 | 型号 | |||
|---|---|---|---|---|---|---|---|
| dynamic | static | Type | Images | Model | |||
| d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | |||
| 25 | 75 | 42 | 18200 | 52000 | 推力轴承 |  |
ZAXFM2575 |
| 20 | 75 | 42 | 18200 | 52000 | 推力轴承 | |
ZAXFM2075 |
| 15 | 55 | 35 | 9600 | 24500 | 推力轴承 | |
ZAXFM1555 |
| 12 | 55 | 35 | 9600 | 24500 | 推力轴承 | |
ZAXFM1255 |
| 10 | 55 | 35 | 9600 | 24500 | 推力轴承 | |
ZAXFM1055 |
| 8 | 35 | 22 | 3400 | 7800 | 推力轴承 | |
ZAXFM0835 |
| 6 | 35 | 22 | 3400 | 7800 | 推力轴承 | |
ZAXFM0635 |
| 5 | 35 | 22 | 3400 | 7800 | 推力轴承 | |
ZAXFM0535 |
| 90 | 210 | 135 | 325000 | 1030000 | 推力轴承 | |
ZARF90210-L-TV |
| 90 | 210 | 110 | 325000 | 1030000 | 推力轴承 | |
ZARF90210-TV |
| 90 | 180 | 135 | 325000 | 1030000 | 推力轴承 | |
ZARN90180-L-TV |
| 90 | 180 | 110 | 325000 | 1030000 | 推力轴承 | |
ZARN90180-TV |
| 75 | 185 | 125 | 290000 | 890000 | 推力轴承 | |
ZARF75185-L-TV |
| 75 | 185 | 100 | 290000 | 890000 | 推力轴承 | |
ZARF75185-TV |
| 75 | 155 | 125 | 290000 | 890000 | 推力轴承 | |
ZARN75155-L-TV |
| 75 | 155 | 100 | 290000 | 890000 | 推力轴承 | |
ZARN75155-TV |
| 70 | 160 | 103 | 201000 | 630000 | 推力轴承 | |
ZARF70160-L-TV |
| 70 | 160 | 82 | 201000 | 630000 | 推力轴承 | |
ZARF70160-TV |
| 70 | 130 | 103 | 201000 | 630000 | 推力轴承 | |
ZARN70130-L-TV |
| 70 | 130 | 82 | 201000 | 630000 | 推力轴承 | |
ZARN70130-TV |
| 65 | 155 | 103 | 172000 | 500000 | 推力轴承 | |
ZARF65155-L-TV |
| 65 | 155 | 82 | 172000 | 500000 | 推力轴承 | |
ZARF65155-TV |
| 65 | 125 | 103 | 172000 | 500000 | 推力轴承 | |
ZARN65125-L-TV |
| 65 | 125 | 82 | 172000 | 500000 | 推力轴承 | |
ZARN65125-TV |
| 60 | 150 | 103 | 187000 | 550000 | 推力轴承 | |
ZARF60150-L-TV |
| 60 | 150 | 82 | 187000 | 550000 | 推力轴承 | |
ZARF60150-TV |
| 60 | 120 | 103 | 187000 | 550000 | 推力轴承 | |
ZARN60120-L-TV |
| 60 | 120 | 82 | 187000 | 550000 | 推力轴承 | |
ZARN60120-TV |
| 55 | 145 | 103 | 177000 | 500000 | 推力轴承 | |
ZARF55145-L-TV |
| 55 | 145 | 82 | 177000 | 500000 | 推力轴承 | |
ZARF55145-TV |
